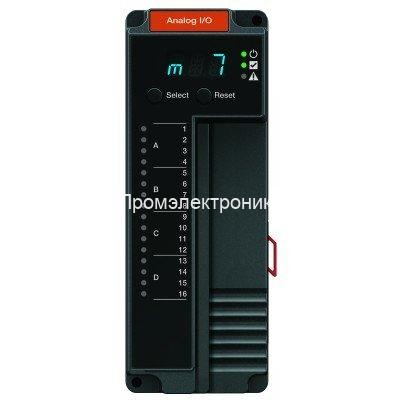

Honeywell R8001U3001

Honeywell R8001U3001 - модуль ввода-вывода аналоговых сигналов

Обеспечивает защиту от 24 В постоянного тока или от 24 до 240 В переменного тока.

Настраиваемая безопасность

Направляющая DIN-рейка

Предназначен для установки внутри электрического шкафа как части системы.

Product Specifications

Application

Provides analog input and output capability for combustion applications

Temperature Range (F)

-20 F to 150 F

Temperature Range (C)

-29 C to 66 C

Used With

R8001A1001/U SLATE Base Module; R8001S9001/U SLATE Subbase

Comments

Includes 4 analog cells per modules that supports a multiple combination of voltage, current, PWM, tach, RTD, 3 wire NTC and Type J and K Thermocouples, IRI Acceptable

Item Type

Product

Approvals, Underwriters Laboratories Inc.

Listed, File: MP268

Operating Humidity Range (% RH)

95% continuous, noncondensing

Shipping and Storage Temperature Range (F)

-40 F to +150 F

Shipping and Storage Temperature Range (C)

-40 C to +66 C

Approvals, Federal Communications Commission

Part 15, Class A

Required Components

R8001A1001/U; R8001S9001/U

Vibration

0.5 G environment

Enclosure Rating

Must be mounted inside a grounded metal enclosure
