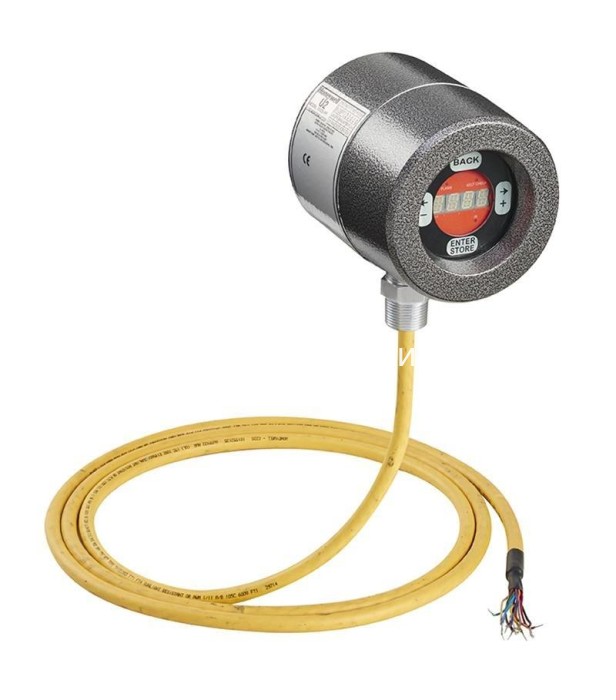

Honeywell U2-1016S

Product Specifications

Application

Single or multiple burners, Fuels oil or coal

Dimensions (in.)

4.3 in. wide x 4.6 in. deep x 6.1 in. high

Dimensions (mm)

109 mm wide x 155 mm deep x 117 mm high

Comments

Other Approvals: IEC Ex nA /ATEX Zone 2 and SIL3 (Temperature Range -40 to 158 F;-40 to 70 C)

Mounting

1" NPT process connection

Electrical Ratings

22-26 Vdc

Approvals, Canadian Standards Association

Approved (Temperature Range -40 to 158 F;-40 to 70 C)

Required Components

ASYU2S, ASYU2S-100, ASYU2S-300 cable assemblies R-518-PT12 and R-518-CL12-PG purge air quick coupler sold separately.

Approvals, Factory Mutual

Approved (Temperature Range -40 to 158 F;-40 to 70 C)

Communications

ModBus and RS422 Compatible

Output

1 NO for flame, 1 NO for Fault and 4-20mA

Connection Type

Quick disconnect -10 conductors-order separately ASY964 10' (3m) cable with connector

Keypad

Integrated touch screen

Status Monitoring

1 LED for each sensor
