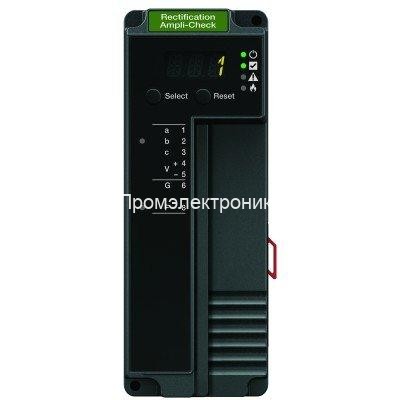

Honeywell R8001V1031 - усилитель сигнала пламени серии slate
Обеспечивает защиту от 24 В постоянного тока или от 24 до 240 В переменного тока.
Настраиваемая безопасность
Направляющая DIN-рейка
Предназначен для установки внутри электрического шкафа как части системы.
Product Specifications
- Application
- Provides response to a rectified signal from a rectification type flame detector to indicate the presence of flame
- Temperature Range (F)
- -20 F to 150 F
- Temperature Range (C)
- -29 C to 66 C
- Used With
- R8001A1001/U SLATE Base Module; R8001S9001/U SLATE Subbase; C700X detector series
- Comments
- This amplifier is used with the Honeywell C700X detector series. The modules will display flame strength and has a 0.0 to 5.0 Vdc flame signal reading range, IRI Acceptable
- Item Type
- Product
- Approvals, Underwriters Laboratories Inc.
- Listed, File: MP268
- Operating Humidity Range (% RH)
- 95% continuous, noncondensing
- Shipping and Storage Temperature Range (F)
- -40 F to +150 F
- Shipping and Storage Temperature Range (C)
- -40 C to +66 C
- Approvals, Federal Communications Commission
- Part 15, Class A
- Flame Failure Response Time (sec)
- 0.8 to 3.0 seconds
- Required Components
- R8001A1001/U; R8001S9001/U
- Vibration
- 0.5 G environment
- Enclosure Rating
- Must be mounted inside a grounded metal enclosure
